1. Misconception: Cutting in flashings is difficult and takes too long.

Truth: Cutting in flashings on asphalt shingles is standard roofing practice- it is easy, takes less than 15 seconds, and saves installers money on every install. ProSolar® has made it even easier with its EZ Cut-In Tool and Milwaukee Long Cut Offset Snips (shown: right).


Flashing Shingle Cut
Cutting in shingles made easy using ProSolar's EZ Cut-In Tool

+ Benefits (Click to expand)

  • Money Savings: Takes only 15 seconds using Milwaukee Long Cut Offset Snips and saves installers about $100 per 6kW* job, while adding only 6-10 min to the total install time.

  • Sealing: Additional rafter probing holes are sealed by shingle overlap.

  • Attachments install flat to roof: When cut in, flashings sit flush against the shingle (left). Cutting in eliminates tilted connections formed when installing attachment over uneven shingles (shown right.)
    Flush Shingle
    Cutting In Flashing:
    Attachment sits flush against shingle
    Uneven Flashing
    Without Cutting In:
    Attachment sits unevenly across shingles

*6kW system based upon 36 connections

2. Misconception: Drilling through concrete tiles is difficult, time-consuming, and cracks tiles.

Truth: Tile drilling is quick and easy. Low-cost, widely available tile bits (such as the $18 Bosch 1/2 in. natural stone tile bit) drill clean holes in about 10 seconds with a standard drill*. A standard drill can easily drill upwards of 20 holes in a tile without breaking the tile (see picture on right)

*Hammer mode unnecessary
Swiss Cheese Tile Small.png

+ Benefits (Click to Expand)

  • Money Savings: Average cost reduction of about $18 per attachment, saving installers roughly $650 per each 6kW* install.

  • 20 Year Proven Design: TileTrac® has been waterproof tested at a nationally recognized testing laboratory and has never experienced a product failure in its 20 years in the industry.

  • Quicker and Easier: Drilling through the tile is much easier and less time consuming than grinding out the underside of tiles for roof hooks or expensive tile replacements.

  • Safer Installs: TileTrac®'s design allows attachments to be installed at the crown area of the tile, which does not obstruct water flow through the valley of the tile.

*6kW system based upon 36 connections

+ View the Tools (Click to Expand)

Standard Drill
Standard Milwaukee Drill
Bosch Drill bit
Bosch 1/2 In. Natural Stone Tile Bit (NS 600)
Costs about $18.00 and will drill 60-80 holes

3. Misconception: Marking and drilling rail holes is difficult and time-consuming.

Truth: The average time to mark and drill is less than 10 seconds per attachment (5 min total for a 6k installation) and can save contractors hundreds of dollars on every 6kW installation.

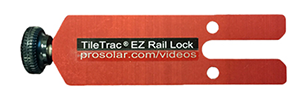

(ProSolar® even makes low cost tools to make drilling 100% error-free for installers of all skill levels. Using the TileTrac EZ Rail Lock tool and a 1/2" step drill bit makes the process quick and accurate.)
TT Rail Lock New.png

Flashing Shingle Cut
l. Mark using TileTrac EZ Rail Lock

Flashing Shingle Cut
2. Drill Rail at Marked Locations

*6kW system based upon 30 connections

+ Benefits (Click to Expand)

  • Cost Savings: ProSolar® RoofTrac® Rail's lightweight c-channel aluminum design offers lower rail costs vs. aluminum-intense T-bolt slotted rail designs. The minimal benefits offered by slotted rails are easily negated by their higher costs. ProSolar® even offers black rail at the same price as clear anodized rail.

  • Stronger: A drilled/bolted connection provides superior structural strength and greatly reduced parts and installation costs. The ProSolar® system also uses anti-seize free 5/16" SS bolts (vs. competitors' 1/4" bolts.) Larger bolt sizes are impact friendly, stronger, easier to remove, and less likely to seize. Larger bolt sizes do not require installers to manually coat threads with anti-seize.

  • Time-Tested Design: While competitors continue to change their rail and clamping designs, ProSolar®'s patented rail and clamping system has never had a product failure or a major product redesign.

  • TileTrac® Compatibility: TileTrac® is only compatible with ProSolar® rail. The ProSolar® rail mounting system was designed and engineered to work with TileTrac®. When used with ProSolar®, loading is symmetrically centered under the rail, as opposed to being offset when used with an "L" foot. ProSolar®'s design, along with its patented channel nut (which offers 10x the contact area of a T-bolt) offers superior strength and rigidity to the TileTrac® stud.

  • Easier Wire Management: RoofTrac®'s open channel design allows for nesting of wires inside the rail and minimizes the need for wire management clips.

4. MisconceptionDrilling rail on the roof creates problem-causing rail chips

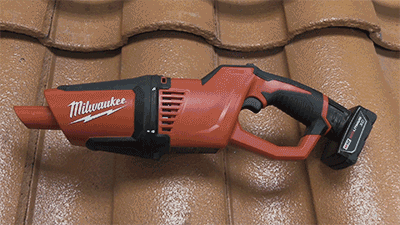

Truth: Rooftop debris is not limited to ProSolar® installations. All installations deal with debris from rail trimming, conduit cutting, copper wire clippings, etc. Luckily, debris from rooftop drilling and cutting can be easily cleaned up in seconds using a small cordless vacuum.

5. MisconceptionTileTrac® does not come with a  subflashing.

Truth: TileTrac® includes a low-cost, easy-to-install sub-flashing in every box. The TileTrac® subflashing installs in less than a minute using Eternabond®/Chem Link underlayment sealant tape.

6. Misconception ProSolar® system requires  external grounding clips for module to rail installations.

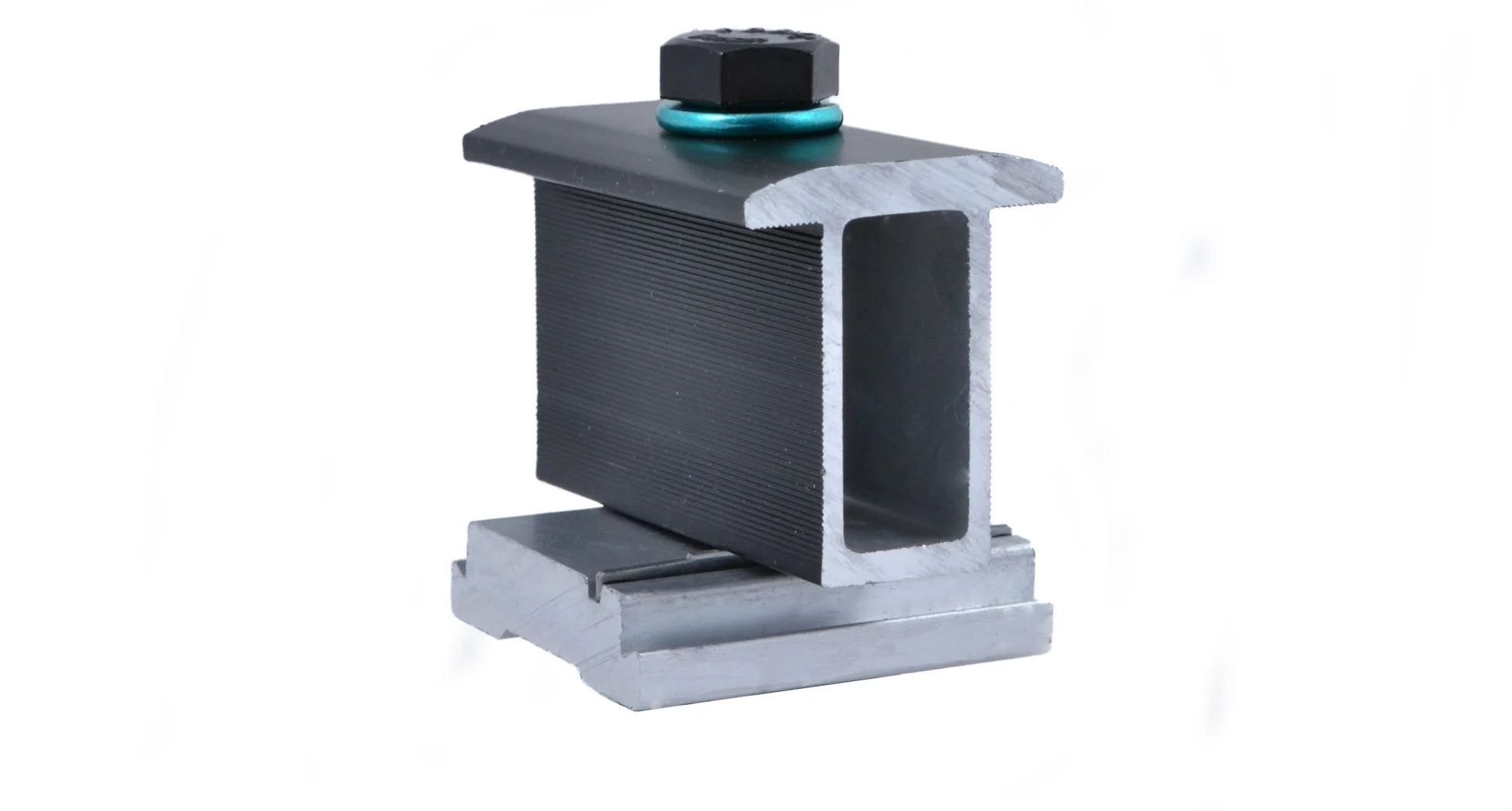

Truth: ProSolar®'s UL2703 Pre-Assembled Self-Bonding Mid Clamps and Rail Splice assemblies are self-bonding (indicated by green lock washer) and do not need external grounding clips.

Mid Clamp Bus Bar.jpg

7. Misconception: ProSolar® clamps cannot be installed mid-rail.

Truth: Installers have always been able to insert clamps mid-rail using pliers. By installer request, ProSolar® has also developed the RoofTrac Rail Spreader as a dedicated tool to make inserting/removing clamps and channel nuts quicker and easier. ProSolar®'s clamps are also self-standing, which makes it incredibly easy to remove clamps while servicing.


8. Misconception: Using ProSolar rail costs installers a lot of money in extra specialty tools/supplies.

Truth: The only extra tool needed for a quality ProSolar installation is a $20 1/2" Irwin Unibit step drill-bit. Otherwise, extra tools are not necessary, but can allow for high-speed installations (see below for recommended tools.)


(High Speed video for your convenience)

New unibit small-improved.png

+ Tool Recommendations (Click to Expand)

Irwin unibit
$19.86- Irwin Unibit
Makes precision 1/2" burr-free drill holes
Rail Spreader
$9.50 - RoofTrac Rail Spreader
Allows clamps and microinverter
channel nuts to be inserted mid-rail
EZ Shingle Cut-In Template
$14.50 - EZ Shingle Cut In Template
Allows for easier comp-shingle
tile cut-in reference.
FastJack Rail Lock
$20.00 - FastJack Rail Lock
Allows installer to lock rail in
place while marking/drilling rail holes
TileTrac Rail Lock
$20.00 - TileTrac Rail Lock
Allows installer to lock rail in
place while marking/drilling rail holes
Malco Shears
$22.00 - Milwaukee Long Cut
Offset Snips

(Part #438-22-4038)
Easily cuts through composition
roof tiles
